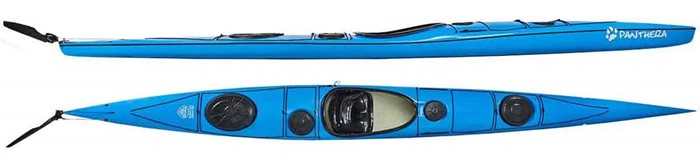

Panthera is a new surfski-sea kayak hybrid – simply put a surfski with a kayak deck. But that would be an over-simplification. Even if the hull is a Spindrift there is also a noticeable influence from Njord. I expect the performance to be a tad less extreme than that of a thoroughbred surfski, but yet manageable should the paddler develop an acute desire to surf diagonally in high speed on large waves. I also expect competent paddlers to be able to keep Panthera in speeds well above hull speed á la surfskis off following seas.

Basically, Panthera is so close to a genuine surfski that a rudder is needed to meet the potential (more about the difference here). An under-the-hull rudder with a surfski type of pedals is, of course, the best, but for fast touring, a rudder on the stern will do fine – preferably with one of the larger blades. With a full touring load, the kayak settles down to more directional stability for relaxed long distance paddling.

John Abercrombie, who built the first Panthera (see below) published this review after a short trial when mid-winter Canada offered a few days with open water.

I thought I'd share my first paddling impressions of my new boat (Bjorn Thomasson Panthera) from a very short outing this afternoon.
I like it! ;-)
Hopping in the boat, the initial feel is a lot like Frej - it feels compact and 'ready to go' but not at all 'twitchy' or unstable.
Secondary stability is excellent- I can set it up on edge very easily, and it stays there. It rolls easily - and I'm not an accomplished roller, at all. The low back deck (like Frej) makes sweep rolls easy.
It feels quick - with the footboard it's easy to put my knees and feet in the middle of the boat and get good rotation and drive. I'll need to put the GPS on it for a longer outing to get some data on the speed.
Maneuverability:
With the rudder down, it goes where it's told with no fuss.
Rudder up - it's quite agile even when not edged (flat). Responds well to sweep strokes which skid the stern around easily, and bow rudder strokes work well. When set on edge, the steering strokes work even better (as you'd expect). Hanging draw stroke works well.
I'll let you know how it does in a breeze and waves, and also with some more weight in the boat, as the season progresses.

John Abercrombie

Arto Nikula has published a photo blog with a lot of instructive Panthera construction photos.

Peter Träisk build an interesting integral rudder on his Panthera (text in Swedish).

Panthera L

I got a request from a tall and heavy paddler about a roomier Panthera, so I added a little deck height (2.5 cm) and beam (1 cm) on the same LOA and named the result Panthera L. It loads 15 kg more on the design waterline and has 20 liters more internal volume. Are you a big guy (>190 cm/95 kg), don't believe in traveling light or has other good reasons you may want to add Panthera "L" in the comment field when ordering.

Panthera and Panthera L
Compare the outer dimensions of Panthera and Panthera L

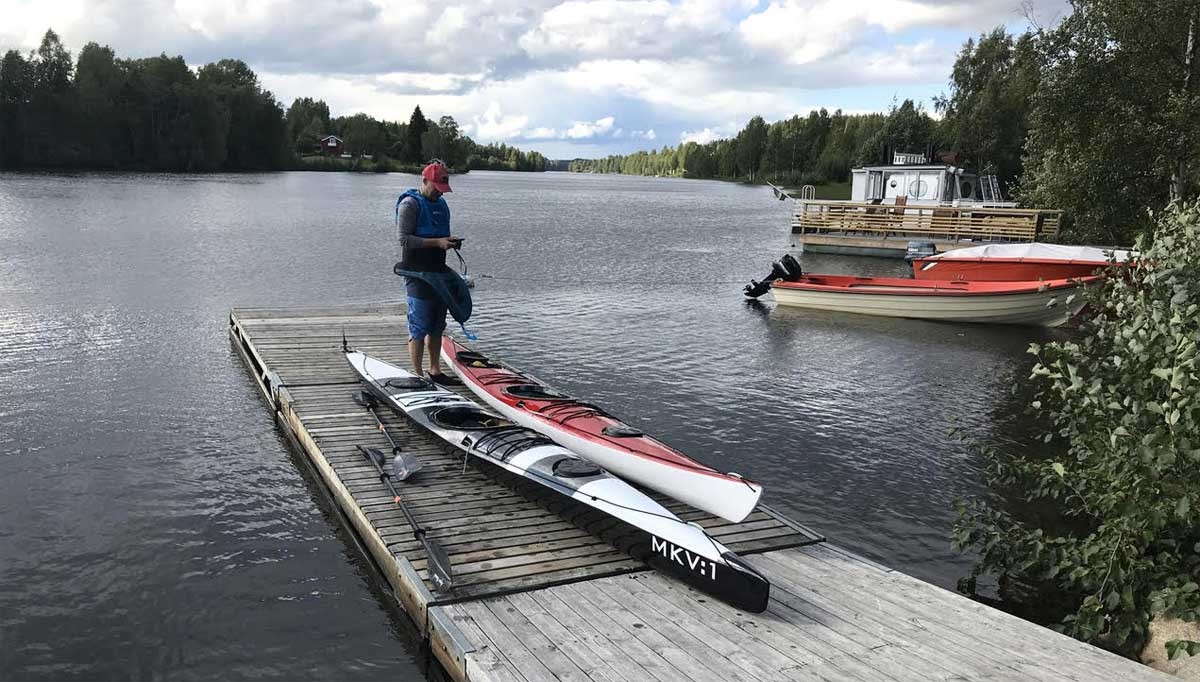

Images

John Abercrombie – PantheraJohn Abercrombie – PantheraJohn Abercrombie – PantheraJohn Abercrombie – PantheraJohn Abercrombie – PantheraJohn Abercrombie – PantheraPantheraPanthera – Arto NikulaFrej and Panthera – Arto NikulaPanthera – Arto NikulaPanthera – Arto NikulaPanthera – Arto NikulaPanthera – Arto NikulaPanthera – Dan CaouettePanthera – Dan CaouettePanthera – Juho PaasoPanthera – Juho PaasoPanthera – Juho Paaso

Particulars

Panthera, lines

Length¹ 559/552 cm (overall/WL)
Beam 52/49 cm (overall/WL)
Draft 10 cm
Cockpit¹ 78x39 cm
Height¹ 29/18 cm (in front of/behind the cockpit)
Weight² 16-19 kg
Load capacity 120 kg/375 litre
Prismatic coefficient 0.563
Wetted surface 2.07 m²
Intended use Fast touring, surfing, sea kayak racing

* These dimensions can be adapted to suit personal needs or wishes.
** Depending on type of wood, equipment, care with epoxy usage, sanding etc. etc.
*** The speed numbers are based on mathematical standard formulas (175 lb paddler + 30 lb carco weight) and corrected from the kayaks actual performance om trials, on tours and in races.
⁴ Calculated resistance in 4 and 5 knots (at nominal load capacity).
⁵ Initial stability and secondary stability on a subjective scale, where 1 is very tippy and 5 is very stable.

Plans

The plan sheets contain the information needed to build the kayak/canoe. Station molds, stems and construction details are full scale. For kayaks the recommended cockpit size is shown half scale with offsets for a full scale drawing and advice on altering the size. On the plans you will also find advice on how to shorten or lengthen the craft. Lines and construction drawings are in metric scale 1:10.

Panthera plans

The illustrated step-by-step building manual is in Swedish only, but it is available online in English: it covers all steps in detail and will guide first-time builders through the project.

Plans, Panthera - 102 EUR Purchase

Minimum window dimensions to get your kayak out from the workshop:
53x28cm

Background and history

On the far side of the Atlantic, there has been for some time a certain interest in surfskis with kayak deck. Dan Caouette got an order for a Spray with deck and built this beauty.

Dan Caouettes Spray med kajaksittbrunn

John Abercrombie and I have exchanged ideas and details for a similar project via mail for a while. It got me looking in my inspiration folder where I hide those more or less whimsical ideas that occasionally might end up in a project: this time a surfski-kayak with lines inspired from the beautiful and exciting Jaguar CX75, an electric hybrid concept supercar, built to celebrate the Jaguar 75th anniversary.

While being a very exciting car – electric motors on all four wheels (4WD without differential and complicated power distribution circuitry) at 778 HP total power, two micro gas turbines from Bladon Jets charging the batteries to achieve 900 km range, and that can use almost any fuel (diesel, biofuel, natural compressed gas, ordinary petrol) emitting 28gr CO2/km over the entire distance – it is also one of the most well-designed cars I have seen for a long time. While many supercars seem to be the accumulation of individually attractive lines and areas that don't quite add up, sometimes backed up by wow-gadgets, the Jag feels like a successful unified design job, looking good from every viewing angle, exuding power, function and elegance. Unfortunately, the global economic crisis erased much of the market for ridiculously expensive supercars, and the project was discontinued in 2012.

There were a lot of photos and drawings in my idea folder, and I started playing with some of them on the digital drawing board.

Inspirationsbilder...

The starting points were: surfski-like performance (superb maneuverability, tamed with an efficient rudder), stability on par with Frej (John referred to a Frej he built some time ago), interior volume as Njord, deck height to accommodate the pedal system of choice, a dip in the sheer line to allow for deep cutouts to improve the stroke geometry – and of course: as much beauty and interest as I can design into the lines ;-)

Panthera and Jaguar

Visually the Jag has been inspiration, but a kayak is a much simpler shape than a car, lacking most of the details that spice up a well-designed car: windows, lights, wheelhouses, air intake, exhaust etc, so in the end, it was not much more than a sweeping sheer line that I could transfer to the kayak. More can be achieved by painting schemes and decals – but for me and for now, it is an interesting appearance on an efficient hull I focussed on. Superficial styling will be left to the builders. For now...

The result is a yet unnamed kayak and plans shipped across the Atlantic to John, who finished the prototype – a real beauty in a black hull and copper-colored deck (inspired from Dan Caouette's 5-part Black Pearl). The project has been discussed and commented on the Kayak Building Forum.



John Abercrombies 'noname' under en kort paus i ösregn och storm som just nu dominerar BC

The name Panthera is the latin name for Jaguar: Panthera Onca.

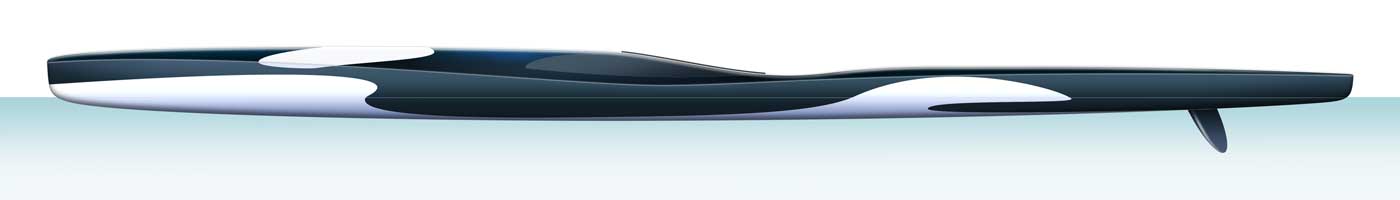

If someone want to go really berserk with the painting scheme, here is an old idea that was abandoned some years ago when Point 6.5 beat me to the name Orca for a surfski. A sea predator would, of course, be a more appropriate inspiration for a kayak than a land predator – but don't blame me if a real Orca takes a fancy to the little pretty kayak-orca…

A marine version of the jag ;-)

Dan Caouette built an Orca-styled baidarka recently. Very nice!

Comments

Great to see the Panthera on the website. Is the price really 950 EUR?!

Oh no, of course not. I am still working on translations, adding numbers and the never-ending task of proofreading ;-)

Ah! New price makes much more sense. Feel free to delete my comments.

No need for that. I believe in keeping all comments (but spam) as part of the work process, and I don't mind sharing even my silly mistakes ;-)

Besides, I am grateful for the help...

(I should perhaps add that I have deleted a couple of comments over the years at the request of the commenteer.)

Always loved that orca... :)

Thanks Dan. I was sorry we couldn't orca-paint one of the first surfskis for the trade shows – somewhat impractical but it would have been fun.

Hi Bjorn,

You need to correct the price on the Nanoq plans too.

Et

Thanks Etienne, another translation error ;-)

Hej Björn!

Jag är riktigt sugen på att bygga mig en ny kajak. Idag paddlar jag mestadels surfski, en Seabird Wave 6.1 men har även en Smart för myspaddlingen. Dock är jag sugen på en snabbare kajak utan att behöva gå på det "extrema" som Havsracer. Jag är väl att klassa som nybörjare då jag började paddla förra sommaren och då med surfskin som första kajak (har ännu inte kantrat med den ;-)

Det jag undrar lite över är hur du skulle beskriva stabiliteten i exempelvis Panthera eller Hunter mot för Wave 6.1?

Hunter och Panthera har snarlika stabilitetkurvor (eller snarare potential – eftersom stabiliteten beror mer på tyngdpunktens läge än på skrovformen). Wave har aningen mindre initialstabilitet med ungefär samma slutstyvhet, beroende dels på den mindre totalbredden och dels på att den smalare botten tvingar upp sitsen en aning jämfört med de andra båda.

Panthera bär sig åt ungefär som Wave i sjön, medan Hunter är en grönlandskajak som kontrolleras bättre med skädda än med roder. Titta även på Njord som är min favorit i skädda-gruppen, både för lek och långfärd.

Hi Bjorn

I have been researching wood surfskis that I could build and love your designs.

I have been reluctant to commit on a boat build, partly because the open cockpit surfski would shorten my season here in Michigan. Cold weather paddles while being entirely exposed to the elements gets a bit dicey for me. The solution would be the Panthera, if it is available with a cockpit opening large enough that I could paddle using a surfski technique Knees high and driving with my legs but small enough that I can use a spray skirt with it with a during the cold weather. Is there different cockpit opening designed for the Panthera, or would I be on my own to customize the combing.

Great Designs,

Thanks,

Walt

Thanks Walt, there are two sizes indicated on the drawings (as can be seen on the thumbnail images on the Panthera page): one small (54x40 cm) indended for kayak control, rolling, bracing etc, and one large (78x39 cm), more standard sea kayak cockpit. These are simple to adjust to your own criteria.

Dear Björn,

First of all, thanks and congratulations for that great design.

Do you suggest Panthera for a paddler approx. 105 kg?

Sincerely

Sukru

Thanks Sukru. Yes, the suggested numbers for Panthera are calculated with a low waterline, which I in retrospect believe is too conservative (and I am going to recalculate). A waterline comparable with most of the other kayaks would indicate a designed load capacity of approx 135 kg. Above that every 17 kg sinks the kayak by 1 cm. With a higher freeboard than kayaks like Njord, Frej, Nomad, Najad etc (the surfski influence – surfskis with their open cockpit normally have a higher sheer to keep water out) there is a healthy margin on top of the theoretical numbers.

A though provocing example of kayak's (and paddler's) capacity is Jim Danielsson who started his famous round-scandinavia trip 25 years ago in an Icefloe (load capacity 150 kg) loaded to 240 kg! And did this at the Finnish-Russian borded in the Barents Sea in early April, launching in freezing temps, ice, snow, severe winter storms, along an uninhabited and dangerous coast.

So Panthera will be fine for touring, excercise and play ;-)

Hej Bjorn,

I really (really !) love your designs and hope to be able to appreciate one in the .. "flesh" soon. I'm intrigued in particular by Panthera, which I consider building during the coming winter. Before committing though, I would appreciate clarification with the followings: I'm 75kg and 1.75m; what would be the ideal dimensions of Panthera design in my case ? I would prefer a slightly shorter version, around 5m LOA - will that be OK in your opinion ? I intend to enjoy the kayak on the Danube river for day trips and, occasionally, in the Ionic Sea and Black Sea.

Thank you !

Thanks Daniel. Yes I think the Panthera would be fine for you, shortened to approx 500 cm. The capacity decreases from 130 kg to 116 kg, which means that you will have a net load capacity of 20-25 kg to the design waterline. And should you for some reason stuff it with 50-60 kg gear it would still float and be maneable, but a bit wetter in waves ;-)

Bear in mind though that Panthera is of surfski origin and thus need a rudder to perform the way intended.

If you (like me) prefer an adjustable skeg, you might take a look at Frej instead.

Hello Björn,

I'm very interested in your Panthera. I consider building this boat and use for fast week trips, with a 20 kg cargo, occasionnaly a bit more., I want the fastest boat I can manage, but as I'm 67 kg I' wonder if the design is a too big for me, (especially if I exercise with no cargo), and if I'd have to shorten the boat or if it's not necessary. I'm very reluctant about modifying your design by myself. Thanks for your answer.

François

The Panthera would be fine, but with a capacity of 130 kg it would float a little high in the water when you have no cargo. But most kayaks commercially available are also designed for paddlers around 80 kg, so that is a problem you will face with most kayaks.

You can shorten it slightly (perhaps down to 533 – 2 cm less distance between the molds when you attach them to the strongback). The obvious consequence with this is that you loose approx 2% of the top speed, but you will also benefit from a slighly better maneuverability.

The Panthera is deigned to be used with a rudder (the surfski influence).

If you prefer to handle your kayak with an adjustable skeg, the best alternative would be a Njord.

Hello, Bjorn!

Can you please let me know some figures about the stability and speed of Panthera? Unlike other models of yours, such information was not given for the wonderful kayak. I am planning to use this boat mainly on the Danube and the Black Sea, as well on the Aegean

I see from the above comments that I have a compatriot from Romania interested in building the same kayak. I wonder if he already started the task and how he proceeds. Would you please pass him my questions together with my e-mail address? Thank you in advance.

Hello Dragos. No order yet from your Romanian countryman (I will pass on your contact data).

I have no final data yet for speed and stability, since I worked over the hull shape a little further after the software had done its share ;-)

But here are the files from the software (drag/speed and stability), which are very close to the final result.

Gokväll Björn,

Undrar hur Panthera'n skulle fungera med en skäda?

Paddlar en Frej idag, men vill ha en "snabbare" kajak för en eventuell HBB-paddling och gillar varken roder till utseende eller dess risk för tekniska problem på långa turer.

Fridens//Dag

Ännu oprövat, men det bör fungera. Jag kan dock tänka mig att det kräver lite mera aktivt pillrande med skäddareglaget än man är van vid.

Ett surfskiskrov, som Pantheras. är normalt helt beroende av ett effektivt roder för att vara hanterbart, dels beroende på att skrovet i stort sett saknar kursstabilitet och dels på att sittbrunnen är placerad rakt över skrovets mittpunkt (centroiderna LCB och LCF ligger mycket nära den geometriska mittpunkten). I en havskajak som Frej ligger dessa centroider en bit akter om mittpunkten vilket ger ett lugnare rörelsemönster (mer av kajakens beteende sitter s a s i skrovet istället för i rodret), men gör det också att havskajaken är svårare att kontrollera i surf.

Gissningsvis betyder det att du får jobba mer aktivt med skäddan för att få tillgång till hela prestandaprofilen: skädda upp lite för att gira, ner lite för att hålla kursen o s v. Men om detta är ett problem är svårt att bedöma utan att prova.

Som potentiell HBB-kajak skulle jag föredra en förlängd (för att kompensera för mindre packvolym) Njord: teoretiskt lika snabb (men i praktiken kan det bli längre dagsetapper eftersom den är lugnare och kräver mindre aktivt jobb i besvärliga förhållanden), liknande lastkapacitet (men mindre känslig för var lastens tyngdpunkt hamnar). Njord surfar sämre än en roderförsedd Panthera, men hur ofta har man grov sjö akterifrån under en långtur?

En roderförsedd Panthera och en stark paddlare kan förmodligen komma till Haparande någon dag snabbare än motsvarande Njord-ekipage, men det sker inte automatiskt. Det krävs en hel del råslit...

is it possible to change rudder on skeg, or it is a bad idea? is there any new information or feedback about how it goes against wind in rough stormy conditions? Bjorn, how do you think Pantera L would be good for 2-3 week touring?

Panthera is designed for rudder, as it has a lot of surfski in the lines and hull configuration.

As with surfskis a lot of the tracking depends on a rudder, and without a rudder, you might have to work the skeg a lot to control the kayak.

Going against hard wind is no problem with Panthera. The pitching in short waves is reasonably easy to manage – again the surfski inheritance.

Panthera L would do fine for fast long distance touring, of course depending on your own weight.

thank you for yor answer, can you explain with skeg and without rudder it is difficult to

keep a straight course or it is difficult to initiate turning? i cant understand of my poor experience. On your opinion, what is better for long distance cruising/expedition greenland style kayak like Nanoq or Pantera, thanks.

With its surfski heritage, Panthera doesn't have a built-in tracking like sea kayaks. With a rudder, you can control both steering and tracking – with a skeg you can just add tracking. This means that you probably will have to use the skeg control a lot to maneuver the kayak: skeg down to go straight, skeg up to turn, down to go straight, up to turn etc – which I would consider annoying in the long run.

Both Nanoq and Panthera will be fine for long-distance touring: Nanoq with a skeg and Panthera with a rudder. Nanoq with an advantage in precision maneuvering close to cliffs and rocks, Panthera slightly faster on long distances.

But you should consider Njord as well. Almost as maneuverable as Nanoq and as fast as Panthera – to me the perfect long distance cruiser.

Hi Bjorn,

I built your Njord last year and have really enjoyed it thus far. True to your word it is a fast cruiser in all weather conditions. The nice low deck is appreciated by my wife who has just about taken over the boat! Therefore, I now look for a second build project.

I would like something around 5m max that is more manoeuvrable than Njord and ever so slightly more stable (but this is not very important, just want to be able to pee from the boat!). Obviously I have considered Frej but would like something a bit different in style. I'm thinking a shortened Panthera L so that I can get the most out of the shorter LOA in speed, have good directional stability in downwind surfing (rudder), and have good manoeuvrability (rudder up). I'm thinking the larger version (L) to compensate for shortening the boat and to give me around 31cm deck height. A comparable commercial boat may be the Taran 16 or Tiderace Pace Action.

I assume a 5m Panthera would be quicker than Frej and possibly more manouvrable (more rocker?). Would you agree?

I'm 75kg, 180cm tall and will mainly paddle empty boat but would like to be able to load it up with 30-40kgs for light touring in rough water.

Thanks,

Justin

A shortened Panthera L would be significantly different from the Njord. Slightly faster overall than a Frej, comparable to the Njord, and more efficient surfing than both. Stability on par with a Frej, and maybe (guessing here) as maneuverable as a Frej, but probably not more (more maneuverable than Njord though). Much more room in the cockpit, which I would see as a drawback, but that is debatable (if you excuse a worn expression, Njord is a kayak you wear, but a surfski is a boat you sit on, or in – in that respect, Panthera is quite surfski-like). Furthermore, the Panthera is rudder-dependant than Njord/Frej are skeg-dependant. You may only occasionally use it with the rudder lifted – the reason being that a surfski hull is a thorough-bred with an efficient rudder replacing the directivity that keeps sea kayaks calm and easy on track.

So, compared to the Njord you get approx the same speed overall (but you have to work a little more with control), more room, more maneuverability and more stability.

Compared to the Frej you get more speed (especially off the wind), slightly more room, approx the same stability and (with the rudder up) the same maneuverability (rudder down you have more control surfing but at low speed Frej will outperform a Panthera).

Hej Björn, finns profilritning för Panthera (för att skissa på färger och utrustning i t.ex.Illustrator) som t.ex. för Njord? mvh Jonas

Det hade jag missat – men nu finns den!
